Description

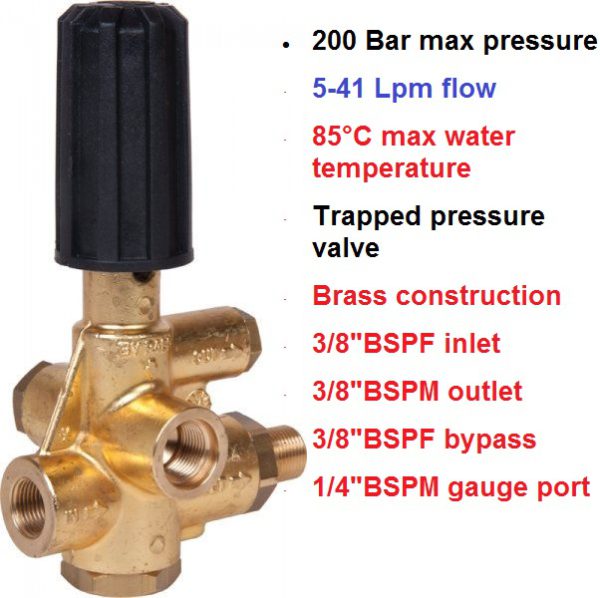

200 Bar 5-41 LPM Interpump Pressure Regulating Valve HM1
HM1HM1
All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)
- 200 Bar max pressure
- 5-41 Lpm flow
- 85°C max water temperature
- Trapped pressure valve
- A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
- Brass construction
- 3/8″BSPF inlet
- 3/8″BSPM outlet
- 3/8″BSPF bypass
- 1/4″BSPM gauge port
- HM Parts List – click here
- HM Handbook click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
