Description

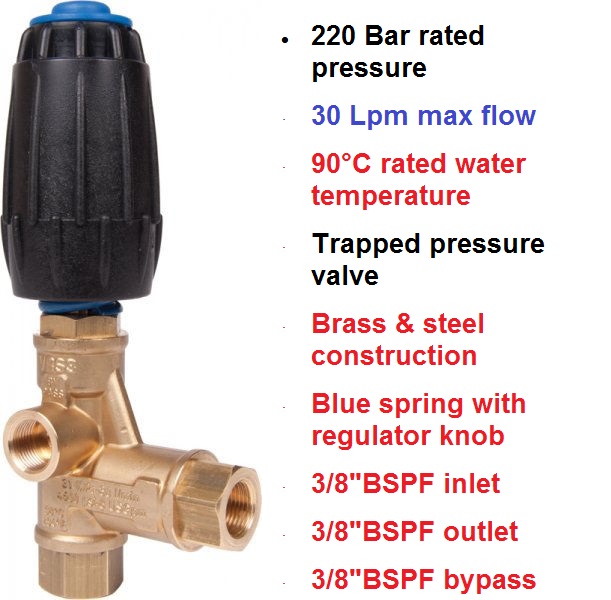

220 Bar 30 LPM VRS3 Pressure Regulating Valve 4072000022
- 220 Bar rated pressure
- 30 Lpm max flow
- 90°C rated water temperature
- Trapped pressure valve
- A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
- Brass & steel construction
- Blue spring with regulator knob
- 3/8″BSPF inlet
- 3/8″BSPF outlet
- 3/8″BSPF bypass
- VRS3 Parts List – click here
- VRS3 Technical Information – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
