Description

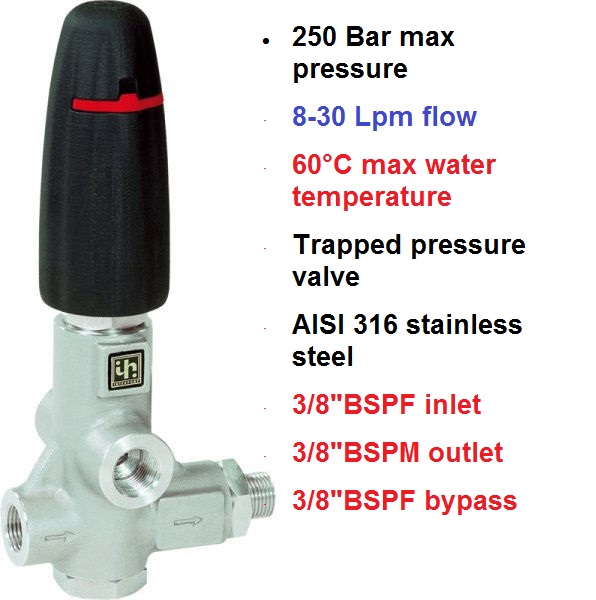

250 Bar 8-30 LPM Interpump Pressure Regulating Valve H253SS
All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)
- 250 Bar max pressure
- 8-30 Lpm flow
- 60°C max water temperature
- Trapped pressure valve
- A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
- AISI 316 stainless steel
- 3/8″BSPF inlet
- 3/8″BSPM outlet
- 3/8″BSPF bypass
- H253SS Parts List – click here
- H253SS Handbook – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
