620 Bar 80 LPM VHP70 Pressure Regulating Valve 4072201000

Description

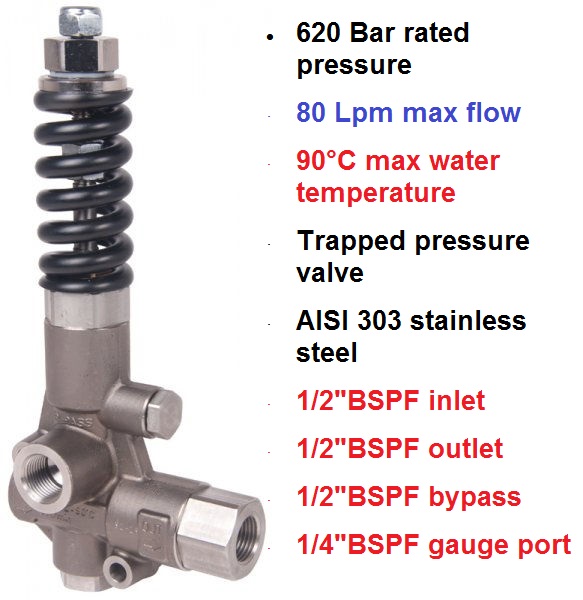

620 Bar 80 LPM VHP70 Pressure Regulating Valve 4072201000

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

• 620 Bar rated pressure
• 80 Lpm max flow
• 90°C max water temperature
• Trapped pressure valve
• A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
• AISI 303 stainless steel
• 1/2″BSPF inlet
• 1/2″BSPF outlet
• 1/2″BSPF bypass
• 1/4″BSPF gauge port
• VHP70 Technical Information – click here
• VHP70 User Manual – click here
