Description

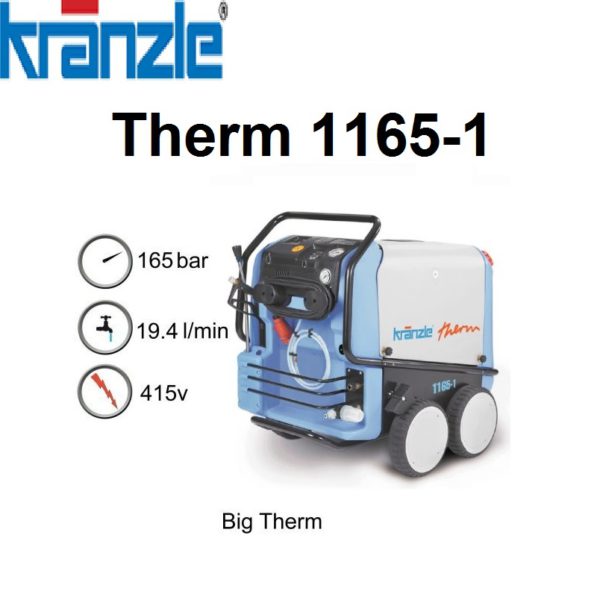

Kranzle Therm 1165-1 415v Hot Pressure Washer – K11651
Technical Data:
Operating pressure bar (MPa): 30-165 (3-16.5)
Max admissible overpressure bar (MPa): 180 (18)
Water output l/min (l/h): 19.4 (1165)
Inlet water temperature max °C: 60
Hot water output temp °C: 12-82
Steam level max °C: 155
Nozzle size: 07
Heating oil consumption max heating output kg/h (l/h): 7.1 (8.5)
Heating oil consumption 45°, kg/h (l/h): 5.6 (6.6)
Heating output Kw: 78
Fuel tank capacity monitoring: 35
Motor speed (rpm): 1400
Connected load V / A / Hz: 400 / 12 / 50
Power intake (kW): 7.5
Power output (kW): 5.5
Weight (kg): 223
Dimensions (L x W x H) in mm: 1050 x 800 x 1015
Features & Equipment:
Total-Stop system with delayed motor cut-out
Additional electrical over-current protection
Water flowing monitoring
Pre-aeration of combustion chamber
Visual flame monitoring
Safety thermostat triggers at emission temperatures above 230 °C
4-way safety system with overload protection
High fuel cut off for burner
Operating hours meter
High pressure detergent
10m Steel braided hose
Starlet trigger gun with safety catch
Stainless steel lance with flat jet nozzle
Parking brake
Water inlet-filter
-
Operating Manual & Spare Parts Diagrams Kranzle
-
41353, 41353.0, 41.353.0
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
