Description

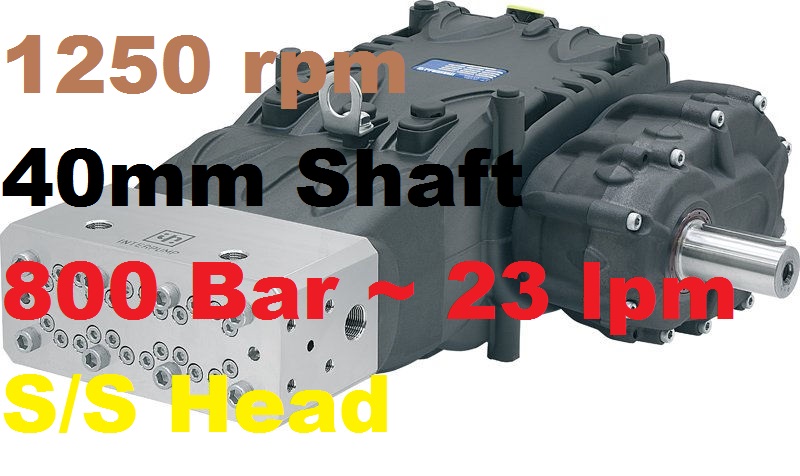

Pratissoli 800 Bar 23 lpm Pressure Pump VF14-GB12
VF14GB12
Pratissoli Plunger Pump – Series VFGB
Gearbox can be mounted LEFT or RIGHT & in 4 Positions from horizontal axis.
All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)
See – “Related Products”
Pratissoli High Pressure Plunger Pump
Stainless Steel Manifold
Max Temp. – 30c
Max Pressure – 800 Bar
Max Flow – 23 lpm
Power Required – 50 hp
Speed – 1250 rpm
Power Required – 50 hp
Speed – 1250 rpm
Shaft – 40mm Male
Weight – 77 kg
Inlet – 3/4″ BSP Female
Outlet – 8mm Flanged
- Parts List & Torque Settings
- Technical Data & Accessories
- Hydraulic Drive Information
- Gearbox Information
- User & Maintenance Manual
- Repair Manual & Tool Chart
- Gearbox Maintenance Manual
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
